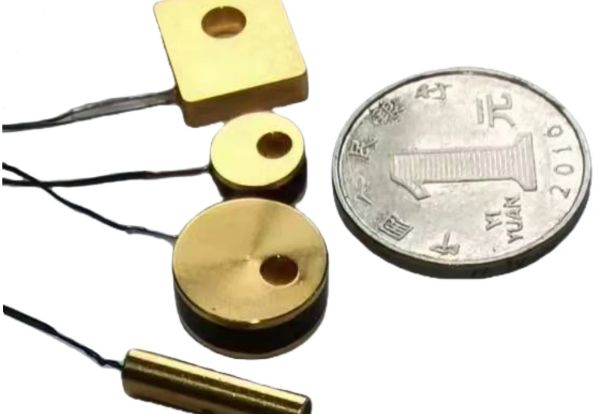

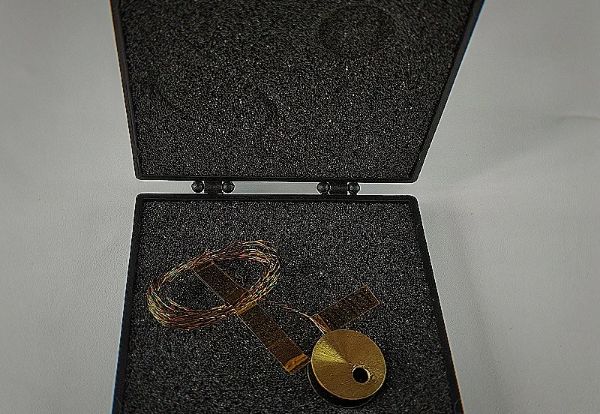

CD package TVO-1040-CD-2.3L, calibration temperature range: 2.3k~315k.

1) The sensor employs a four-wire method, with four color indicators: black and yellow (+) and red and green (-).

2) The excitation current used for the sensor is 10μA.

3) Calibration curves are provided in .340 electronic format and will be sent to users via email.

4) The sensor is compatible with all Lake Shore temperature measurement instruments/leiden LCR Bridge, and its usage method is the same as that of imported sensors.

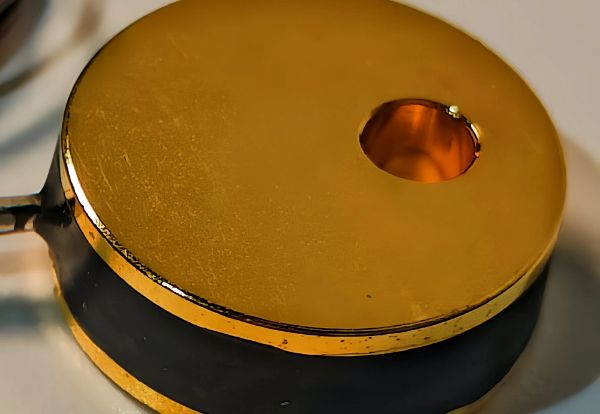

 5) Sensor installation: Fix the sensor with an M3 screw by drilling a threaded hole on the surface of the object to be measured. For optimal thermal conductivity: If the installation surface is gold-plated, simply press and fix the sensor directly. If not gold-plated, it is recommended to apply a thin layer of thermal grease between the sensor and the contact surface before tightening the screw.

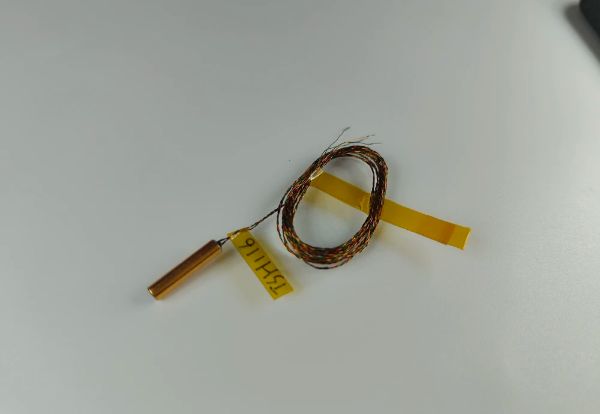

6) The standard lead length is 1 meter (custom lead lengths are available upon request). After installation, it is recommended to perform heat sinking on the sensor leads to prevent external heat from affecting low-temperature measurements due to the proximity of the leads to room temperature.

 Simple heat sinking involves coiling excess wire into a spiral or wrapping it around a heat sink shaft in low-temperature equipment.
